API 610 Type VS3 Mixed-Flow & Axial Flow Pumps - VAF Series

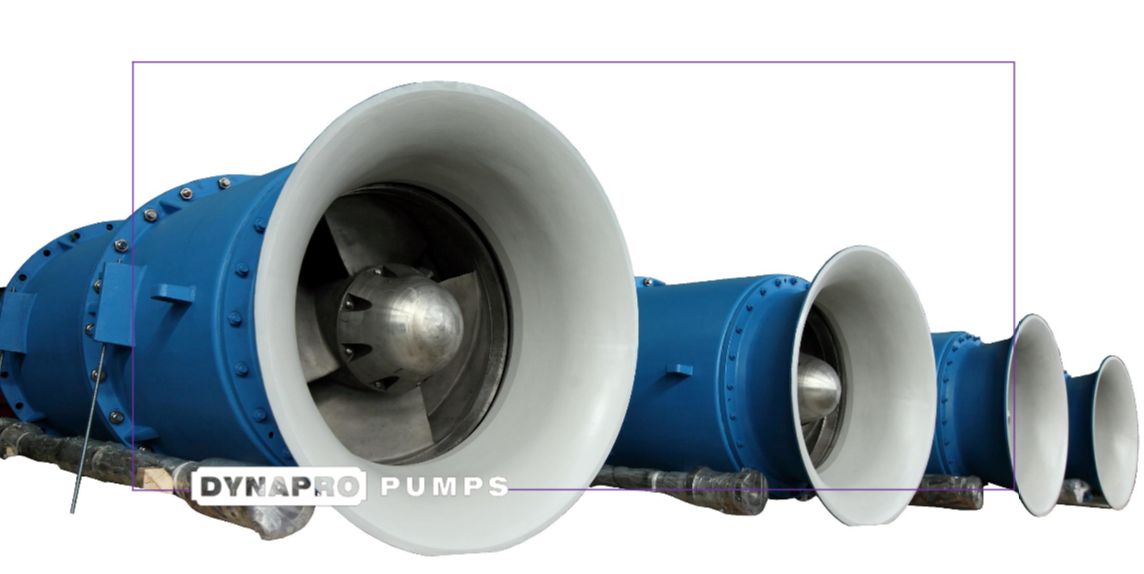

Dynapro Pumps Vertical Mixed-Flow Pumps and Axial Flow Pumps Type VAF are process and utility pumps designed in compliance with API 610, Type VS3, Latest Edition.

Pumps are in vertical configuration with single or multistage arrangements, single or double suction first stage impeller for shorten pump length, vertical turbine or diffuser types. The pumps cover the widest range of capacity. They can be used for low pressure and huge flowrate, utility transfer, water and sea water intake, and booster; from oil and gas, refineries, petrochemicals, chemicals, fertilizers, power generation, mining, pulp & paper, general industries, and related services.

All API 610 materials are available as standard to match your applications; from S-5, S-6, S-7, S-8, C-6, A-7, A-8, D-1, D-2, and specialty or higher grades are also available, plus NACE compliant materials. Standard Documentation, Testing and NDT packs are offered. Alternatively the packages can be tailored to fit customer exact requirements.

Performance Envelope-
Design Standard – API 610 (ISO 13709), Latest Edition.
Design Pressure Rating – Up to 12 barg.
Temperature Rating – Up to 90 °C.
Flowrate – Up to 40000 m³/h.
Differential Head – Up to 100 m.
Speed – Up to 1800 rpm.
