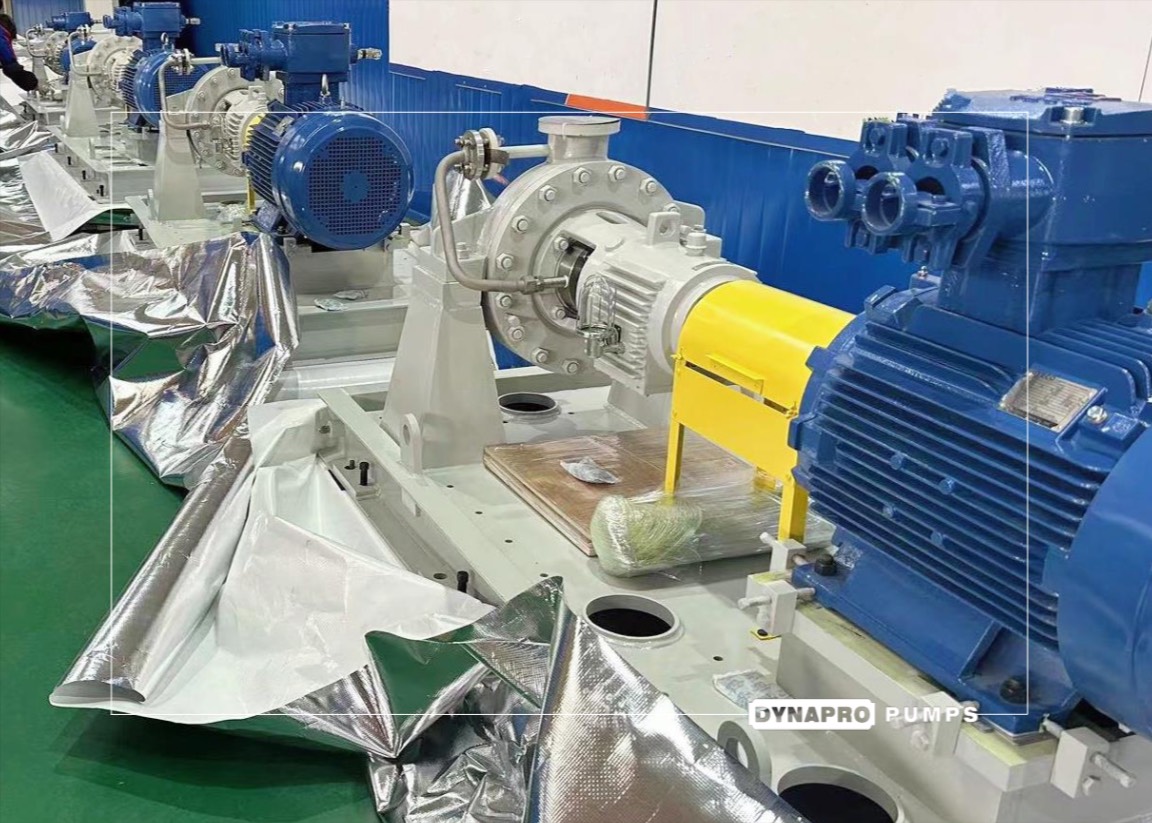

Dynapro Pumps SJA Series, Horizontal Single Stage End Suction Pumps are process and utility pumps designed in compliance with API 610 (ISO 13709), Type OH2, Latest Edition.

Pumps are horizontal configuration, overhung, end suction, radially split, centerline mounted, end/top nozzles orientation.

The SJA Series are process pumps, designed and manufactured for heavy duty processes, transfer, booster, condensate extraction, pipeline, gas processing, LPG transfer, etc…; from oil and gas, refineries, petrochemicals, chemicals, fertilizers, power generation, mining, pulp & paper, general industries, and related services.

All API 610 materials are available as standard to match your applications; from S-5, S-6, S-7, S-8, C-6, A-7, A-8, D-1, D-2, and specialty or higher grades are also available, plus NACE compliant materials. Standard Documentation, Testing and NDT packs are offered. Alternatively the packages can be tailored to fit customer exact requirements.

Performance Envelope-
Design Standard – API 610 (ISO 13709), Latest Edition.
Design Pressure Rating – Up to 60 barg (870 psig).
Temperature Rating – -40 °C to 370 °C.
Flowrate – Up to 2000 m³/h (8800 USgpm).
Differential Head – Up to 250 m (820 ft).
Speed – Up to 3600 rpm.
