ANSI B73.1 SCP-196 Series - Chemical Process Pumps

BG D-196 01

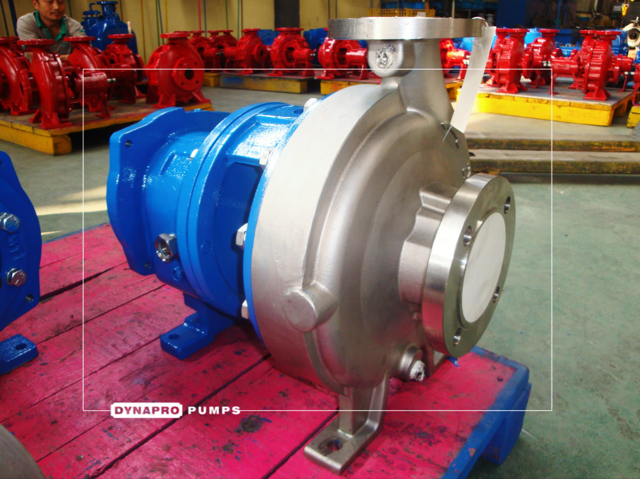

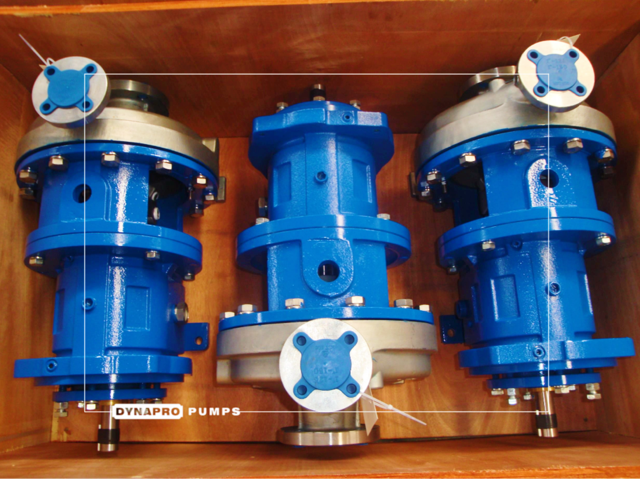

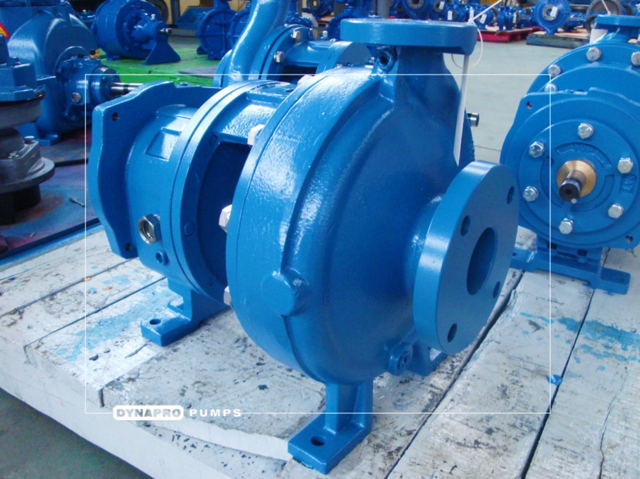

Dynapro Pumps SCP-196 Series are chemical process pumps designed in accordance with ANSI B73.1 Standard.  The pumps are horizontal arrangement, overhung, single stage, radially split, /older-women-dating/ foot mounted, end/top nozzles orientation. It has the broadest performance range in the industry and are used in heavy-duty chemical process, transfer, booster, chemicals, petrochemicals, water treatment, and related services. All ANSI materials are available as standard to match your applications; from Ductile Iron, 304SS, 316SS, Alloy-20, Hast-B, Hast C. and specialty or part time job near me higher grades are also available.  Alternatively the packages can be tailored to fit customer exact requirements.

Performance Envelope-
Design Standard – ANSI B73.1, ANSI Plus.
Design Pressure Rating – Up to 16 barg.
Temperature Rating – Up to 100 °C (212 °F).
Flowrate – Up to 3000 m³/h (13200 USgpm).
Differential Head – Up to 150 m (492 ft).
Speed – Up to 3600 rpm.
